Feedwater Control Valve Assembly - CALL FOR PRICING
$ 0.00 (3 in stock)

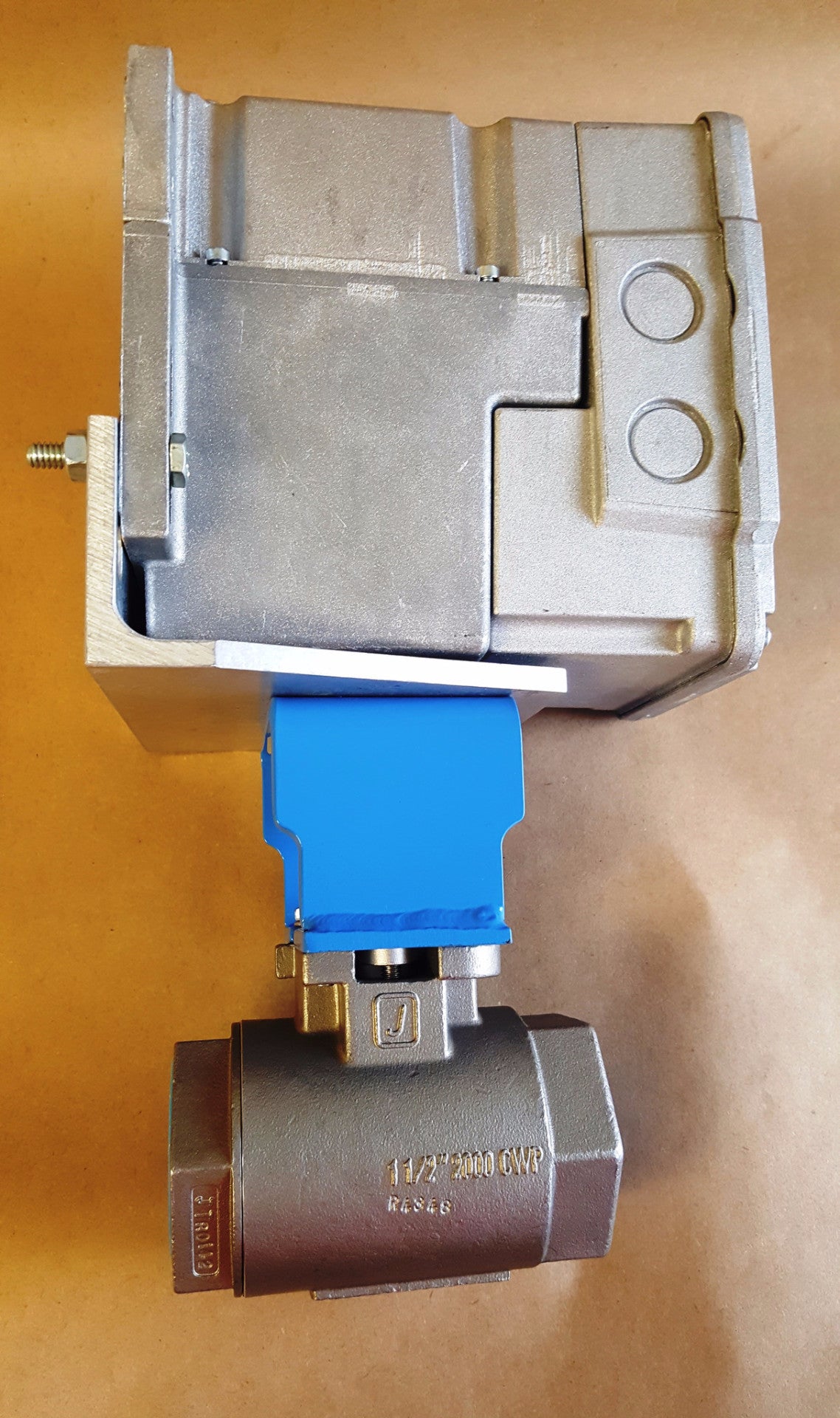

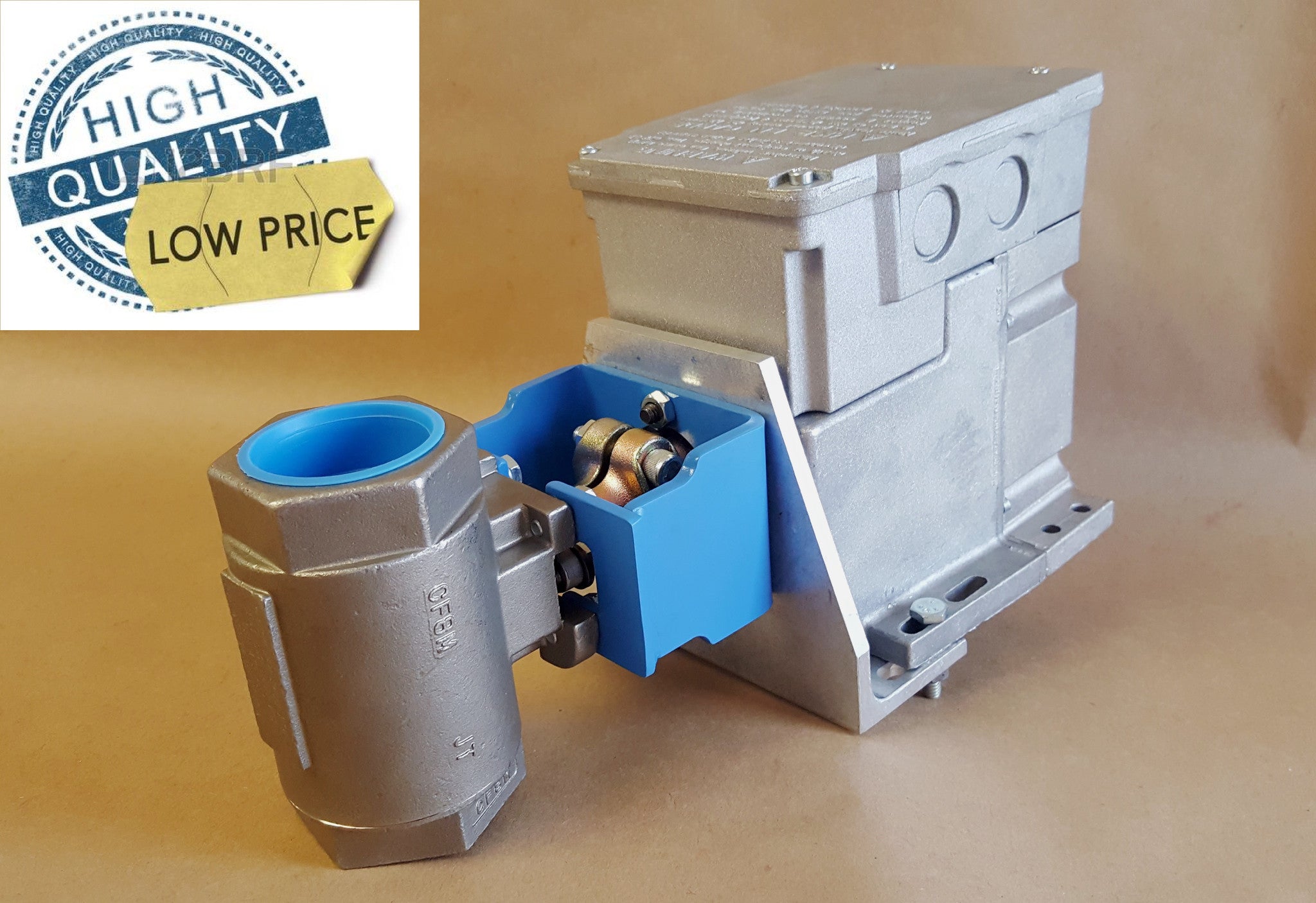

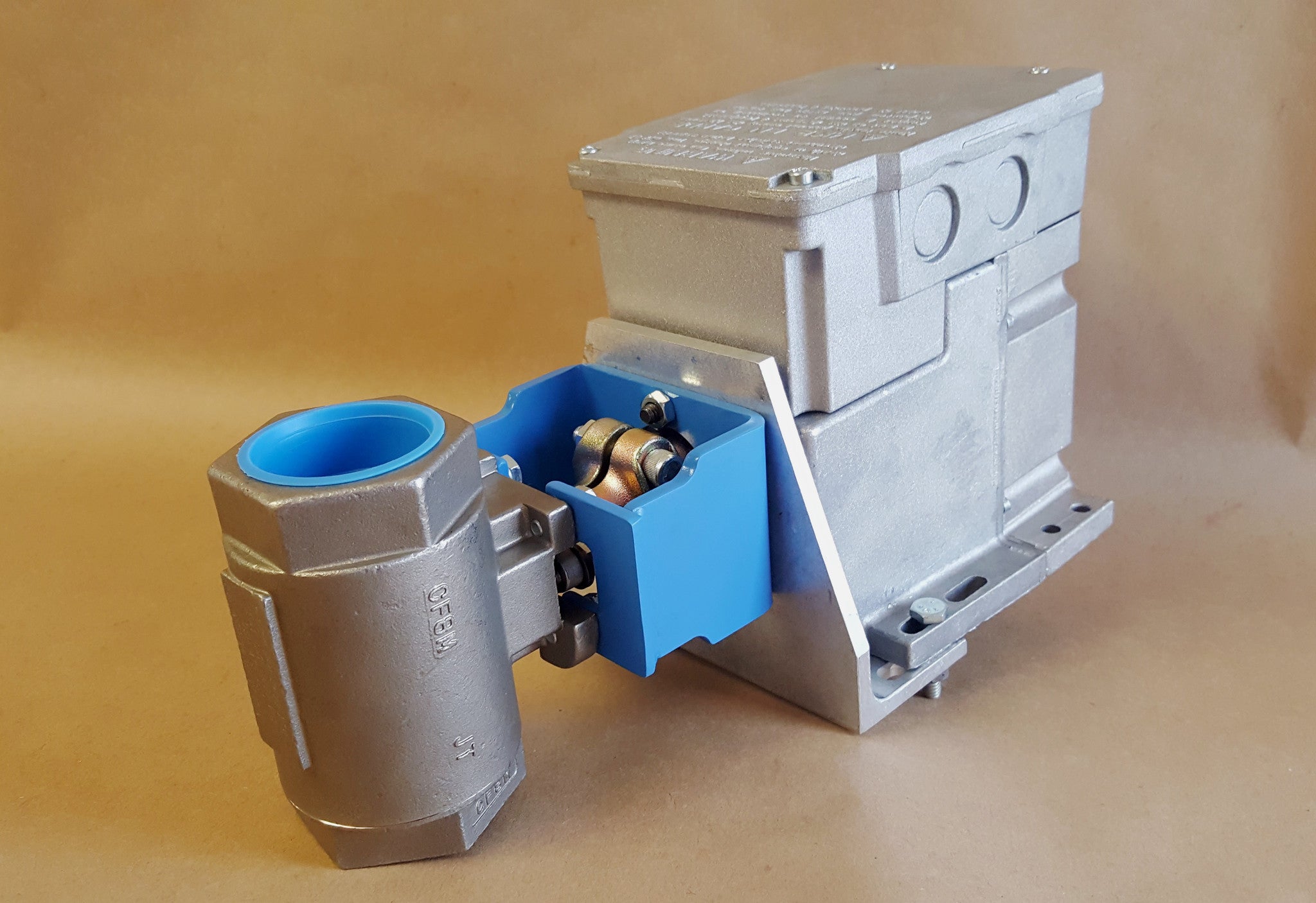

Description: Completely Assembled Feedwater Control Valve Assembly.
If you need assistance in ordering the correct Feedwater Control Valve Assembly for your boiler please call our office at (360) 256-0923 or send us an email at info@nwim.us and one of our team member will be able to assist you.
Please choose from the following:
Jamesbury Ball Valve:
| 9FB 3600 XTB | 1/2" NPT SS XTFE | 2.62" E-E | |
| 9FB 3600 XTB | 3/4" NPT SS XTFE | 3" E-E | |
| 9FB 3600 XTB | 1" NPT SS XTFE | 3.55 E-E | |
| 9FB 3600 XTB | 1-1/4" NPT SS XTFE | 4" E-E | |
| 9FB 3600 XTB | 1-1/2" NPT SS XTFE | 4.38 E-E | |
| 9FB 3600 XTB | 2" NPT SS XTFE | 4.38 E-E |
Honeywell Modutrol IV Motor:

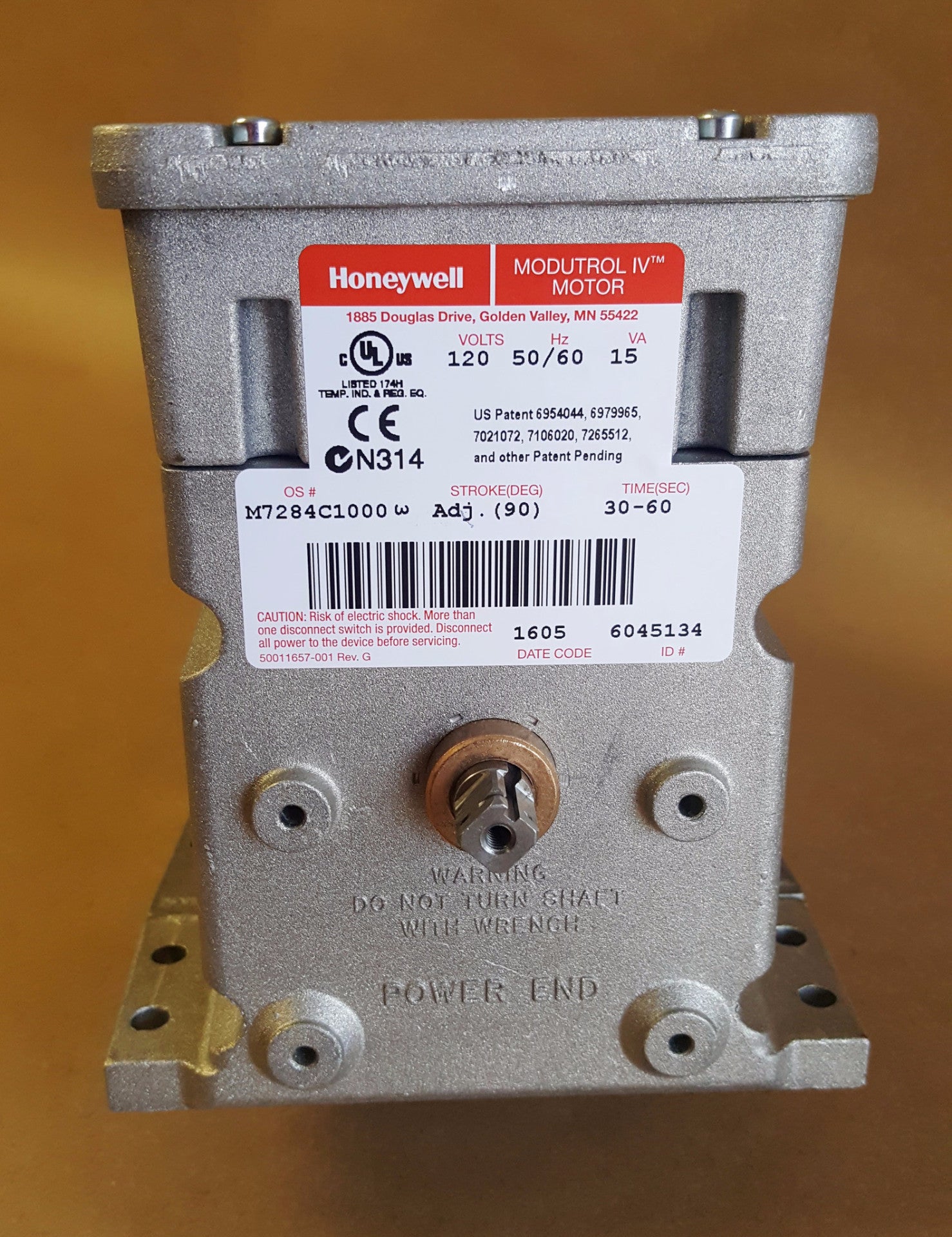

| Option 1: | M7284C1000 | 4-20mA | Modutrol IV Motor with Transformer | |
| Technical Documentation | ||||
| Product Data and Specifications-Product Data for Series 71, 72 and 76 Modutrol IV Motors | ||||
| Installation Materials-Honeywell Damper Adjustment Guide | ||||
| Product Data and Specifications-Specification Data for M7281, M7282, M7284, M7285, M7294 Modutrol IV Motors | ||||
| Option 2: | M9484F1031 | 135 OHM | Modutrol IV Motor | |
| Includes: | 50017460-003 | 120/24V | Internal Transformer | |
| Technical Documentation | ||||
| Operator/Owner Materials-Addendum for Modutrol IV Motors | ||||
| Wiring-Wiring for Modutrol Motors | ||||
| Product Data and Specifications-Product Data for M91XX and M94XX series 1 models Series 90 Modutrol IV Motors | ||||
| Product Data and Specifications-Specification Data for M91XX and M94XX series 1 models Modutrol IV Motors (series 1) | ||||
| Product Data and Specifications-Product Data for Series 90 Modutrol IV Motors | ||||
| Product Data and Specifications-Addendum for Modutrol IV Motors | ||||
| Option 3: | M9184D 1021 | 24 Vac/ 50/60 Hz | Modutrol IV Motor Proportional Action |
| Technical Documentation | |||
| Product Data and Specifications for Series 90 Modutrol IV Motors | |||
| Product Data and Specifications for M91XX and M94XX Series 1 models Series 90 Modutrol Motors | |||
| Installation Materials - Honeywell Damper Adjustment Guide | |||
| Product Data and Specifications fro M9181, N9184, M9191, M9194 Modutrol IV Motors | |||
NWIM Bracket Assembly:
| Aluminum Bracket Hardware included in all assemblies |
See more: Feedwater Control Valve Assembly
